JK
8-16S 100A JK BMS w/ Communication Ports
8-16S 100A JK BMS w/ Communication Ports
Low stock: 3 left
Couldn't load pickup availability
8-16S 100A JK BMS with Communication Ports
Optimize your lithium battery pack’s performance with the 8-16S 100A JK Battery Management System (BMS). This robust BMS is designed for 8 to 16-series lithium cells, offering essential protection features such as overcharge, over-discharge, and short-circuit safeguards.
Key Features:
- Current Handling: Supports a maximum current of 100A.
- Communication Ports: Facilitates easy integration and monitoring.
- Compatibility: Ideal for various applications requiring reliable battery management.
| PB1A16S10P | |
|---|---|
| Cells in series(LiFePO4) | 8S-16S |
| Cells in series(Li-ion) | 7S-16S |
| Cells in series(LTO) | 14S |
| Cont. discharge | 100 A |
| Cont. charge | 100 A |
| Max. discharge (2min) | 200 A |
| Balance current | Active 1 A (Adjustable) |
| Internal Resistance | 1.00 mΩ |
| Overcharge current protection | 10 - 100 A (Adjustable) |
| Overcharge/over-discharge voltage protection | 1.2 - 4.35 V (Adjustable) |
| Temperature protection | Yes |
| Short Circuit protection | Yes |
| Coulomb counter | Yes |

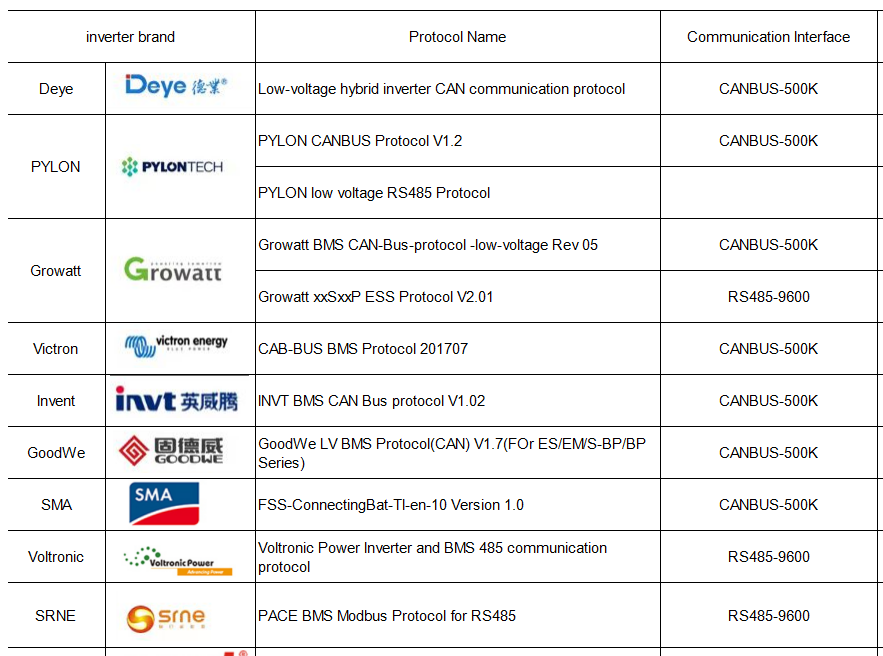

| Communication | Bluetooth/RS232/ RS485/CANBUS |
| BMS Size | 300 x 100 x 20 mm |
| Communication Breakout Board Size | 160 x 45 x 17 mm |

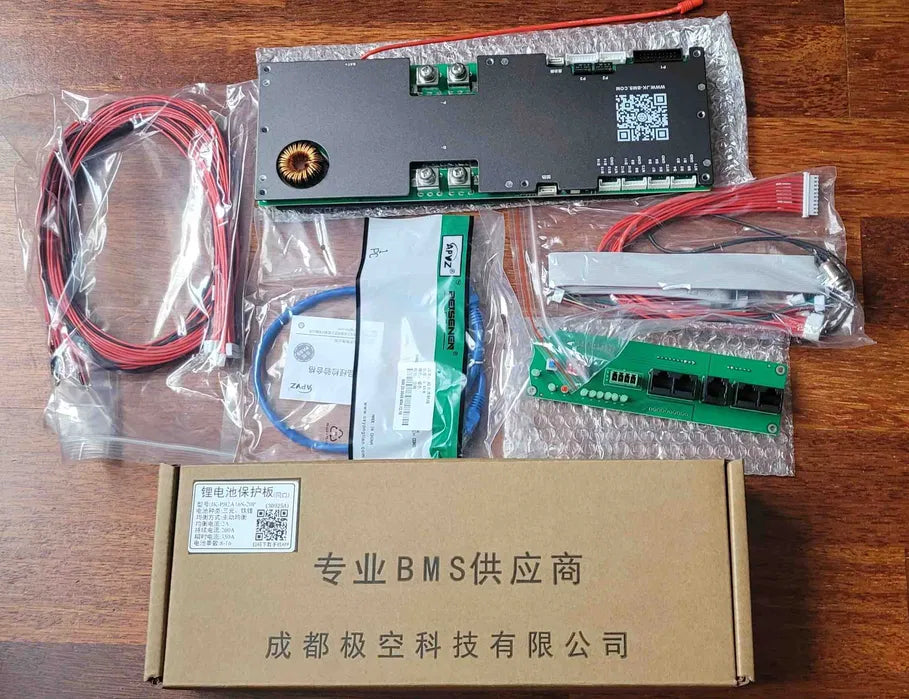

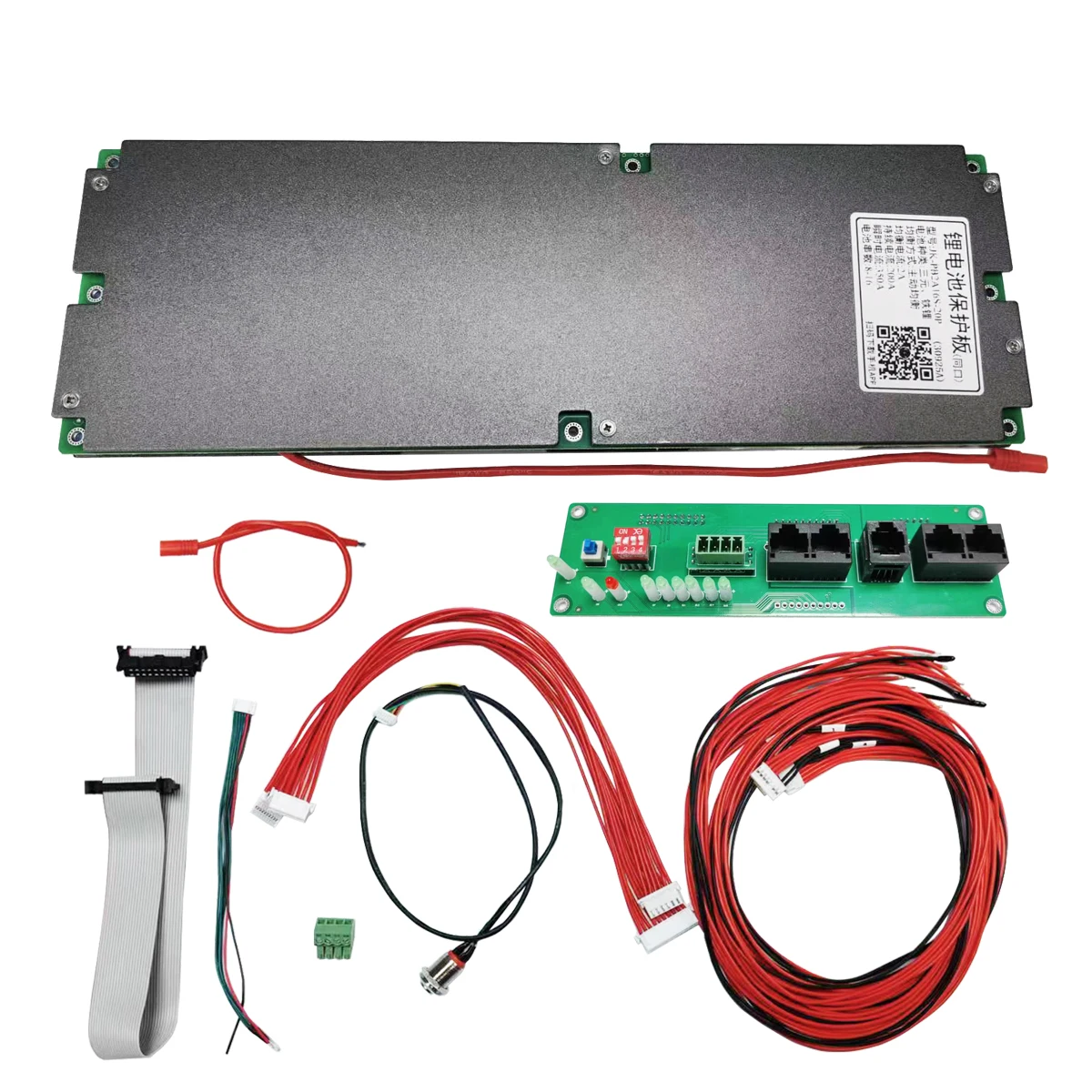

Box Contents:

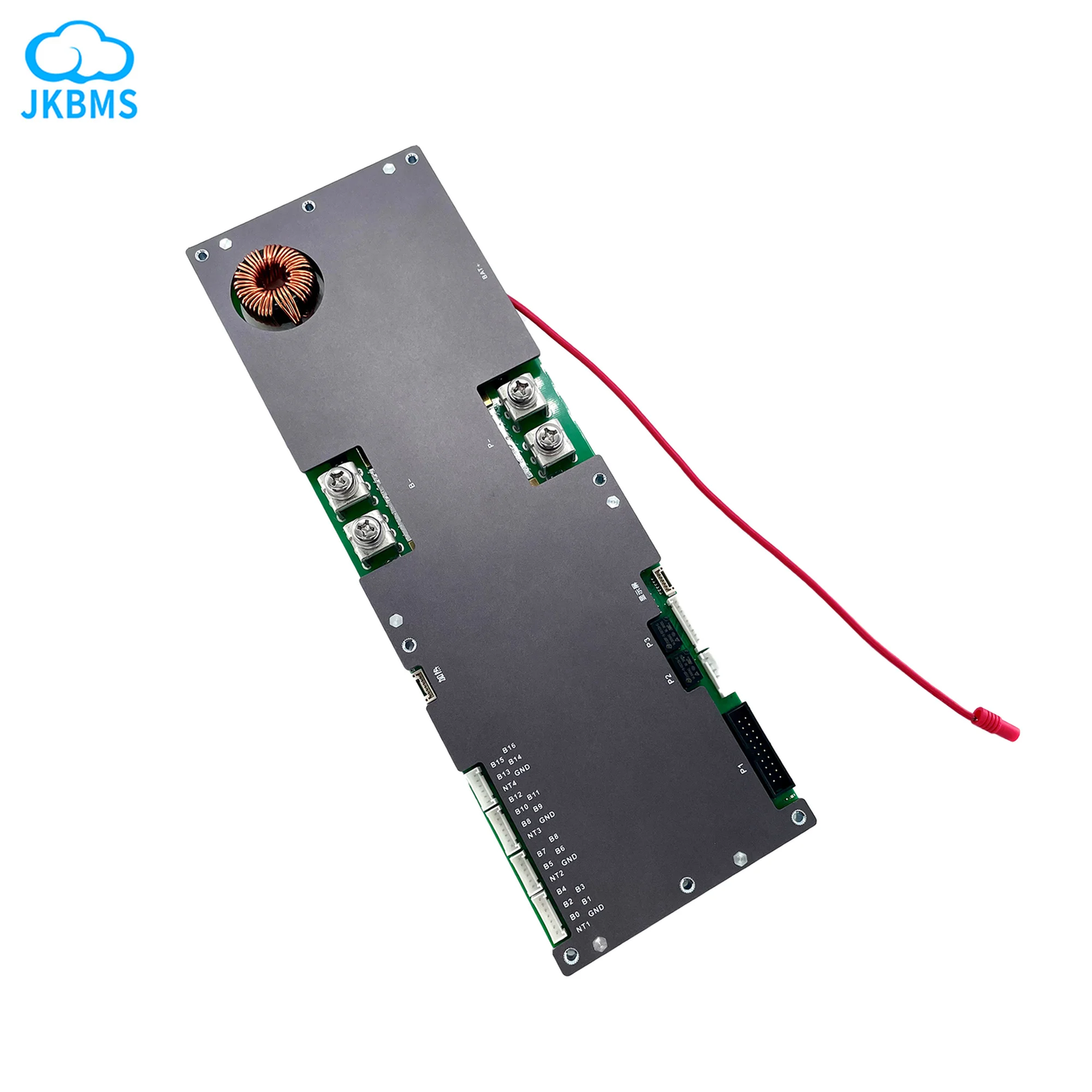

- Bluetooth Enabled BMS

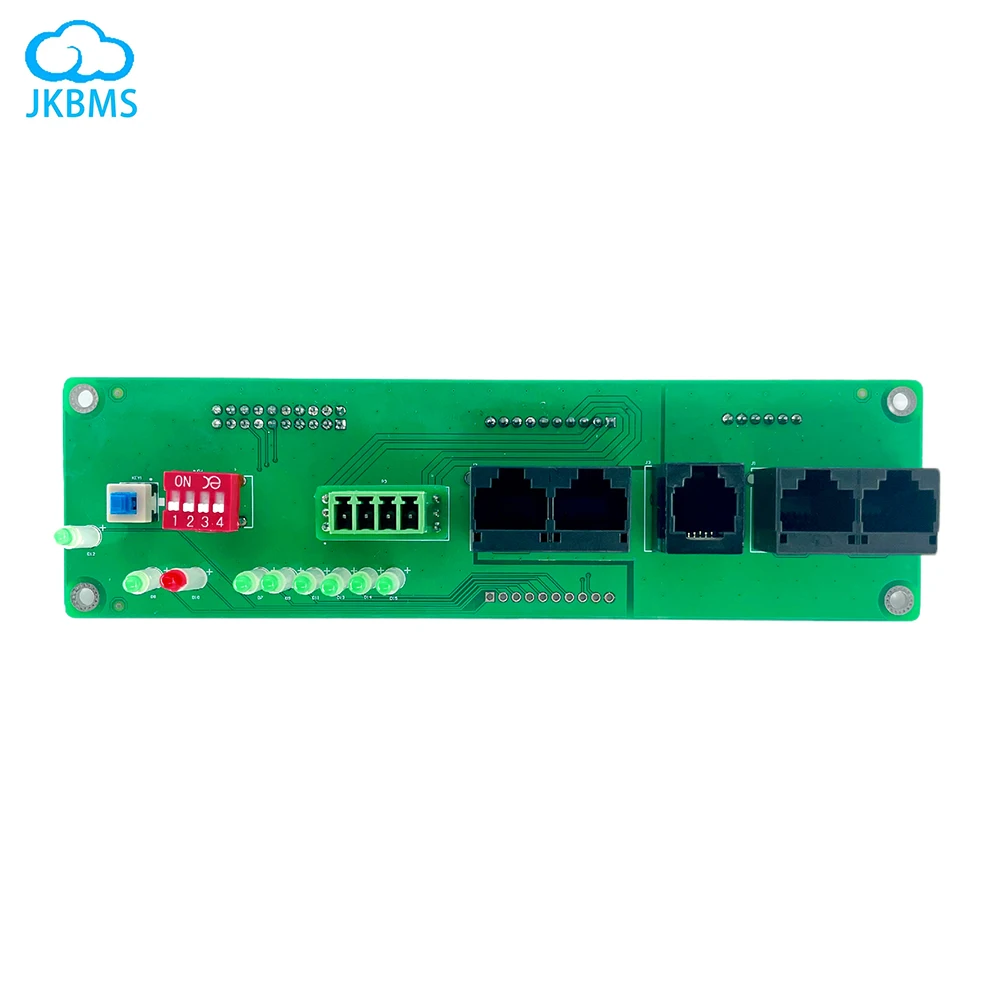

- Communication Breakout Board
- Balancing Wires
- Communication Wires
- Temperature Probes
- Fair-use warranty*
