8-16S 200A JK BMS w/ Communication Ports

8-16S 200A JK BMS w/ Communication Ports

R 2,899.00
R 2,899.00
Sale Sold out
Tax included. Shipping calculated at checkout.

18 in stock

8-16S 200A JK BMS with Communication Ports

Optimize your lithium battery pack’s performance with the 8-16S 200A JK Battery Management System (BMS). This robust BMS is designed for 8 to 16-series lithium cells, offering essential protection features such as overcharge, over-discharge, and short-circuit safeguards.

Key Features:

  • Current Handling: Supports a maximum current of 200A.
  • Communication Ports: Facilitates easy integration and monitoring.
  • Compatibility: Ideal for various applications requiring reliable battery management.



PB2A16S20P
Cells in series(LiFePO4) 8S-16S
Cells in series(Li-ion) 7S-16S
Cells in series(LTO) 14S
Cont. discharge 200 A
Cont. charge 200 A
Max. discharge (2min) 350 A
Balance current Active 2 A (Adjustable)
Internal Resistance 0.47 mΩ
Overcharge current protection 10 - 200 A (Adjustable)
Overcharge/over-discharge voltage protection 1.2 - 4.35 V (Adjustable)
Temperature protection Yes
Short Circuit protection Yes
Coulomb counter Yes
Communication Bluetooth/RS232/
RS485/CANBUS
BMS Size 300 x 100 x 20 mm
Communication Breakout Board Size 160 x 45 x 17 mm

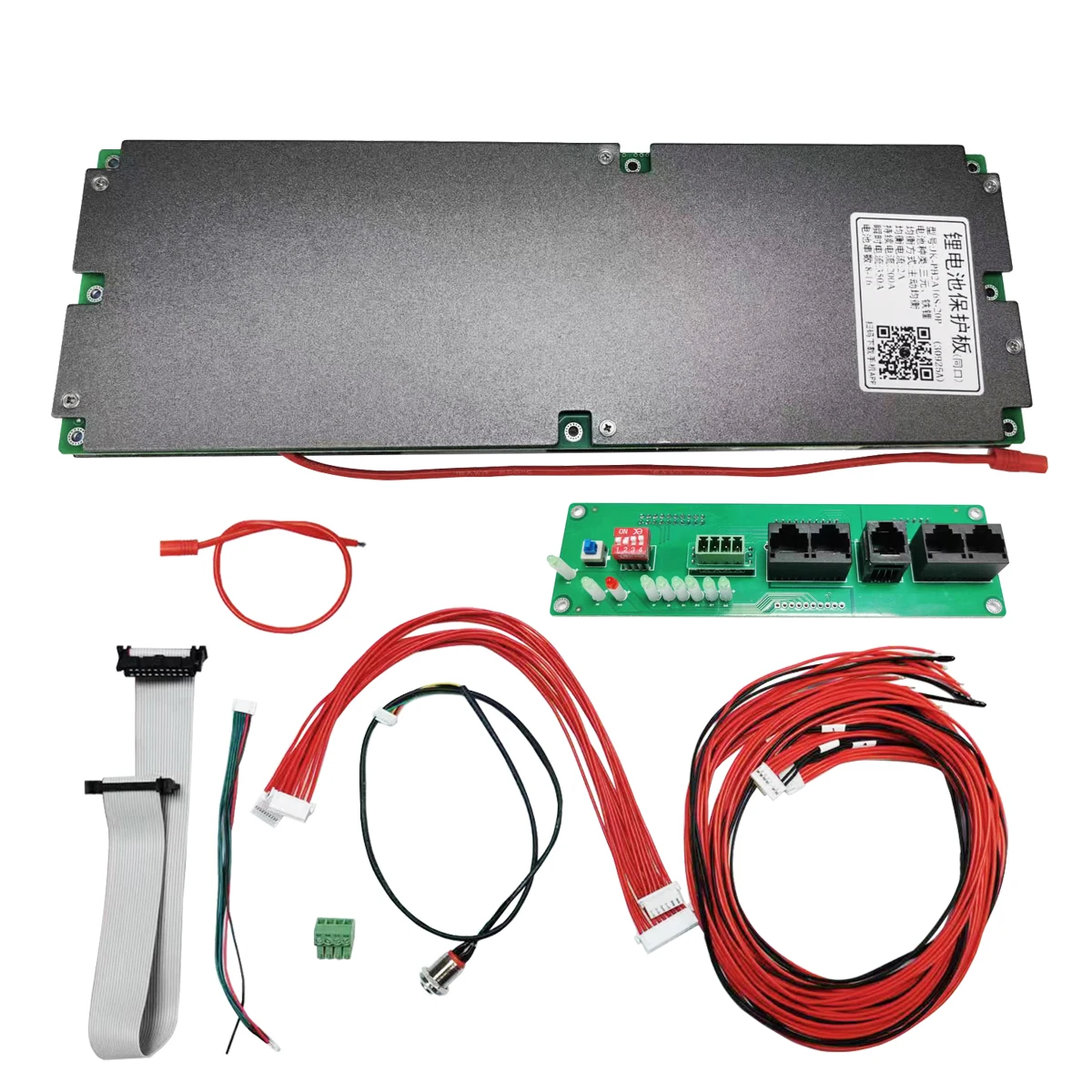

Box Contents:

  • Bluetooth Enabled BMS
  • Communication Breakout Board
  • Balancing Wires
  • Communication Wires
  • Temperature Probes
  • Fair-use warranty*
