JK
JK BMS 300A (4-8S) w/ Bluetooth
JK BMS 300A (4-8S) w/ Bluetooth
Regular price
R 1,599.00
Regular price
Sale price
R 1,599.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
6 in stock
No reviews
Couldn't load pickup availability

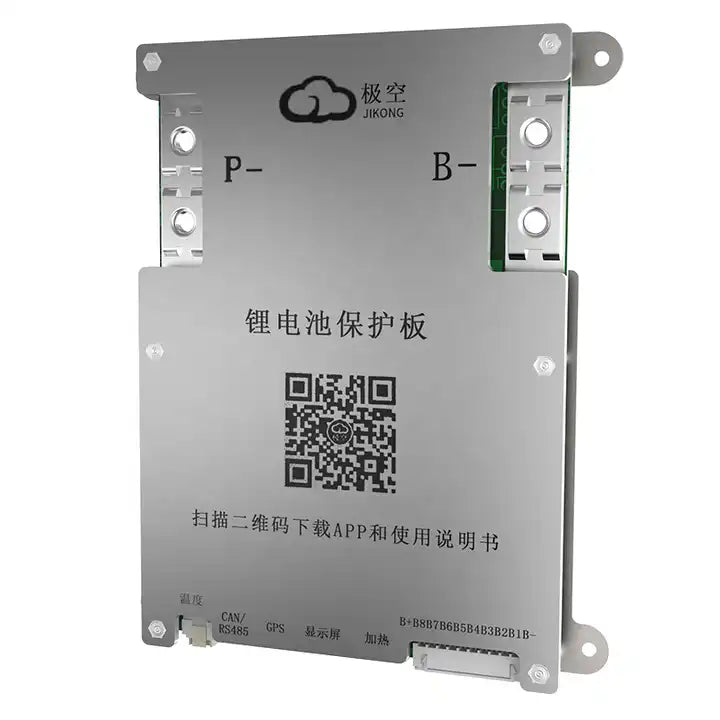

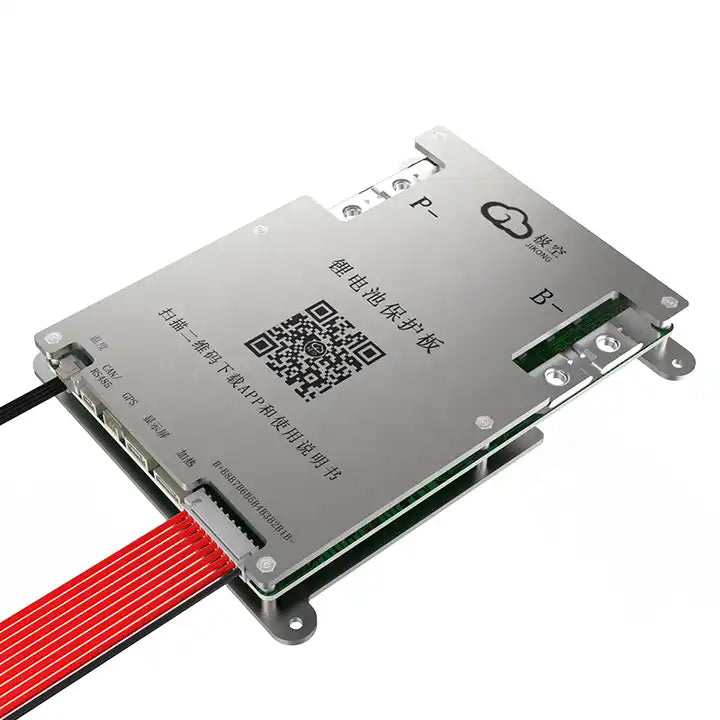

JK BMS B2A8S30P 4-8S 300A with Bluetooth
Enhance your battery management system with the JK BMS B2A8S30P, designed for 4 to 8 series lithium-ion cells. This 300A BMS features Bluetooth connectivity, enabling real-time monitoring and management via your smartphone. It ensures optimal battery protection with built-in safeguards against overcharge, over-discharge, and short circuits.
Key Features:
- Current Rating: Supports up to 300A.
- Bluetooth Functionality: Monitor and manage settings remotely.
- Versatile Compatibility: Ideal for various lithium battery applications.
| B2A8S30P | |
|---|---|
| Cells in series(LiFePO4) | 4S-8S |
| Cells in series(Li-ion) | 3S-8S |
| Cells in series(LTO) | 6S-8S |
| Cont. discharge | 300 A |
| Cont. charge | 300 A |
| Max. discharge (2min) | 450 A |
| Balance current | Active 2 A (Adjustable) |
| Internal Resistance | 0.3 mΩ |
| Overcharge current protection | 10 - 200 A (Adjustable) |
| Overcharge/over-discharge voltage protection | 1.2 - 4.35 V (Adjustable) |
| Temperature protection | Yes |
| Short Circuit protection | Yes |
| Coulomb counter | Yes |
| Communication | Bluetooth/RS485/CANBUS |
| Size | 153x136x18 mm |

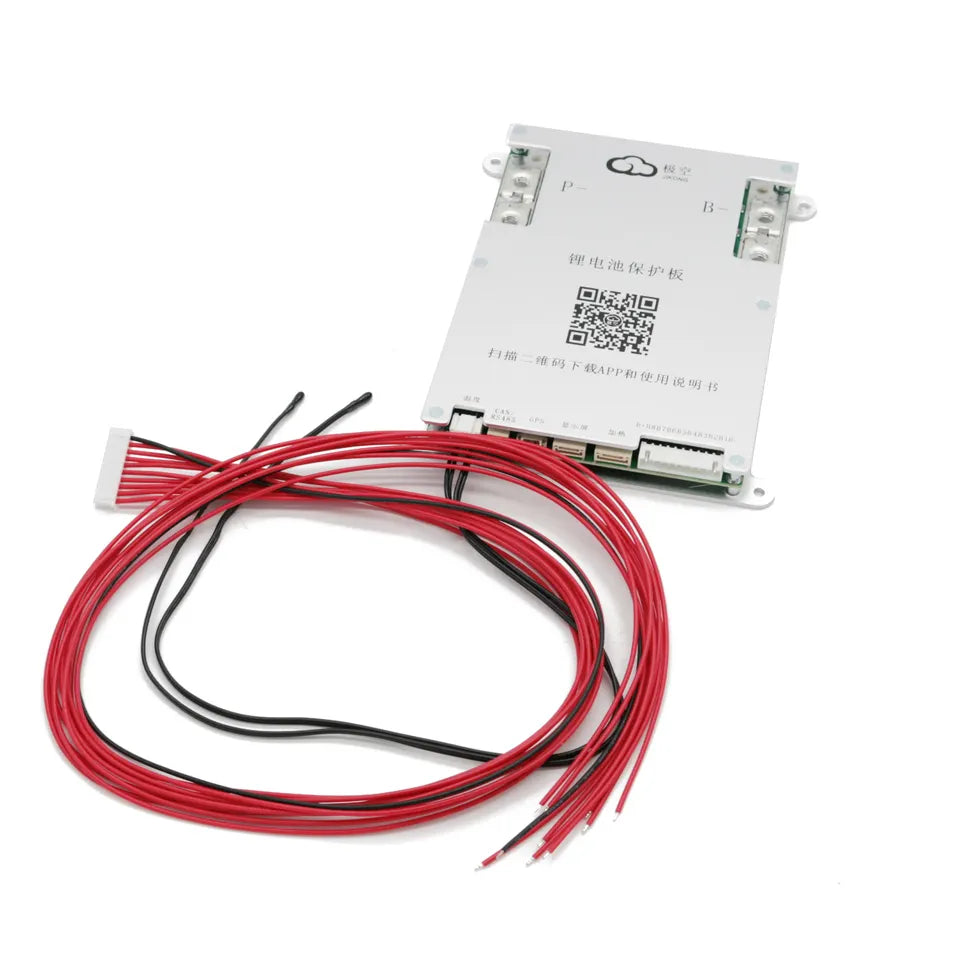

Box Contents:
- Bluetooth Enabled BMS
- Balancing Wires
- Temperature Probes
- Fair-use warranty*
