JK BMS 100A (4-8S) w/ Bluetooth
JK BMS 100A (4-8S) w/ Bluetooth
8 in stock
Couldn't load pickup availability

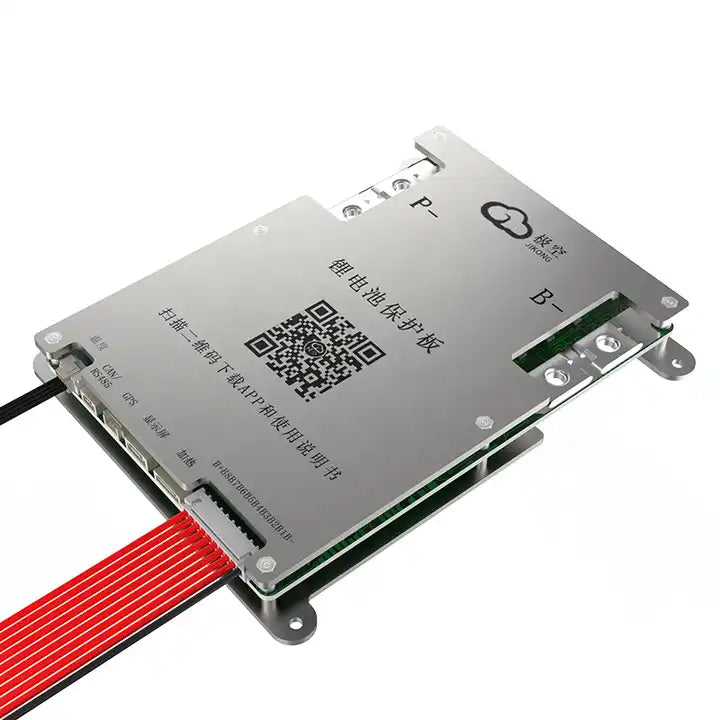

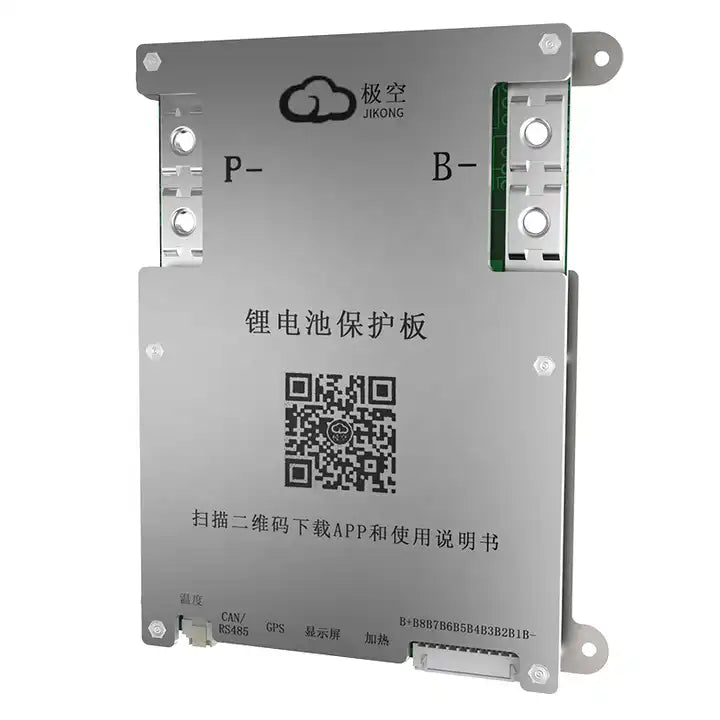

JK BMS B1A8S10P 4-8S 100A with Bluetooth
Enhance your battery management system with the JK BMS B1A8S10P, designed for 4 to 8 series lithium-ion cells. This 100A BMS features Bluetooth connectivity, enabling real-time monitoring and management via your smartphone. It ensures optimal battery protection with built-in safeguards against overcharge, over-discharge, and short circuits.
Key Features:
- Current Rating: Supports up to 100A.
- Bluetooth Functionality: Monitor and manage settings remotely.
- Versatile Compatibility: Ideal for various lithium battery applications.
| B1A8S10P | |
|---|---|
| Cells in series(LiFePO4) | 4S-8S |
| Cells in series(Li-ion) | 3S-8S |
| Cells in series(LTO) | 6S-8S |
| Cont. discharge | 100 A |
| Cont. charge | 100 A |
| Max. discharge (2min) | 200 A |
| Balance current | Active 1 A (Adjustable) |
| Internal Resistance | 0.3 mΩ |
| Overcharge current protection | 10 - 100 A (Adjustable) |
| Overcharge/over-discharge voltage protection | 1.2 - 4.35 V (Adjustable) |
| Temperature protection | Yes |
| Short Circuit protection | Yes |
| Coulomb counter | Yes |
| Communication | Bluetooth/RS485/CANBUS |
| Size | 153x136x18 mm |
Box Contents:

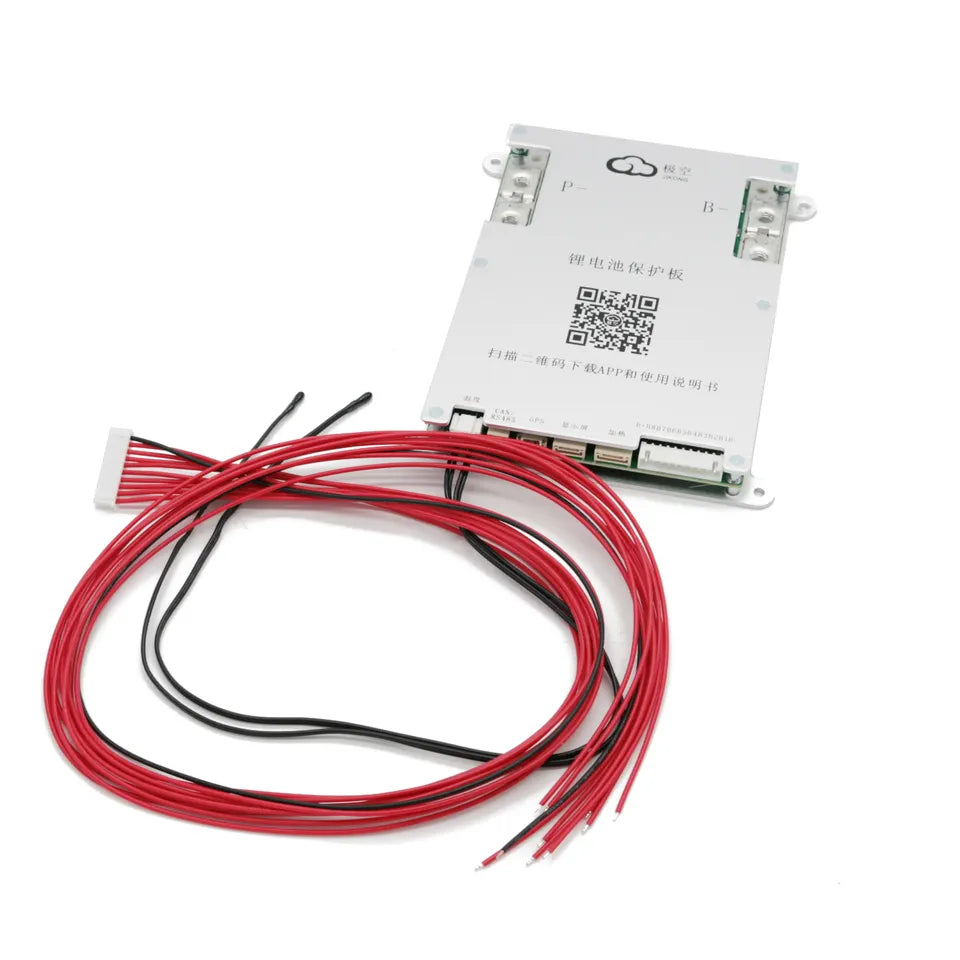

- Bluetooth Enabled BMS
- Balancing Wires
- Temperature Probes
- Fair-use warranty*
I am very satisfied with the product and the software is great. The active balancer is useful and keeps the cells balanced perfectly. The bluetooth functionality is very useful. Overally this is a good product.
I am impressed by your service guys you are the best. I never thought I was going to receive my parcel in 1and half days. Keep it up you are the best
Excellent service and value for money
Hey guys.
This jk bms is awesome. I had a JBD bms istalled on a 200a battery and the cell balancing was completely crap. It could only balance with 120ma. This JK bms sorted the cells out in 2 days. Will buy some more of them as soon as you get stock on the 200amp ones.
