JK BMS B2A20S20P 8-20S 200A with Bluetooth
Enhance your battery management system with the JK BMS B2A20S20P, designed for 8 to 20-series lithium-ion cells. This 200A BMS features Bluetooth connectivity, enabling real-time monitoring and management via your smartphone. It ensures optimal battery protection with built-in safeguards against overcharge, over-discharge, and short circuits.
Key Features:
- Current Rating: Supports up to 200A.
- Bluetooth Functionality: Monitor and manage settings remotely.
- Versatile Compatibility: Ideal for various lithium battery applications.
| B2A20S20P | |
|---|---|
| Cells in series(LiFePO4) | 8S-20S |
| Cells in series(Li-ion) | 7S-20S |
| Cells in series(LTO) | 12S-20S |
| Cont. discharge | 200 A |
| Cont. charge | 200 A |
| Max. discharge (2min) | 350 A |
| Balance current | Active 2 A (Adjustable) |
| Internal Resistance | 0.47 mΩ |
| Overcharge current protection | 10 - 200 A (Adjustable) |
| Overcharge/over-discharge voltage protection | 1.2 - 4.35 V (Adjustable) |
| Temperature protection | Yes |
| Short Circuit protection | Yes |
| Coulomb counter | Yes |
| Communication | Bluetooth/RS485/CANBUS |
| Size | 162x102x20 mm |

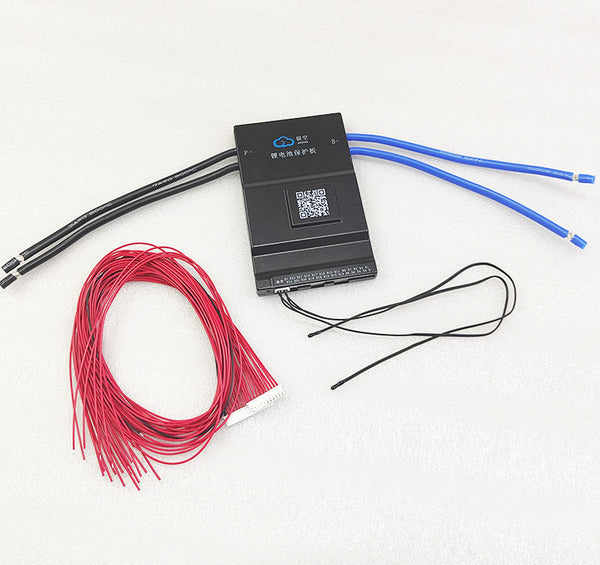

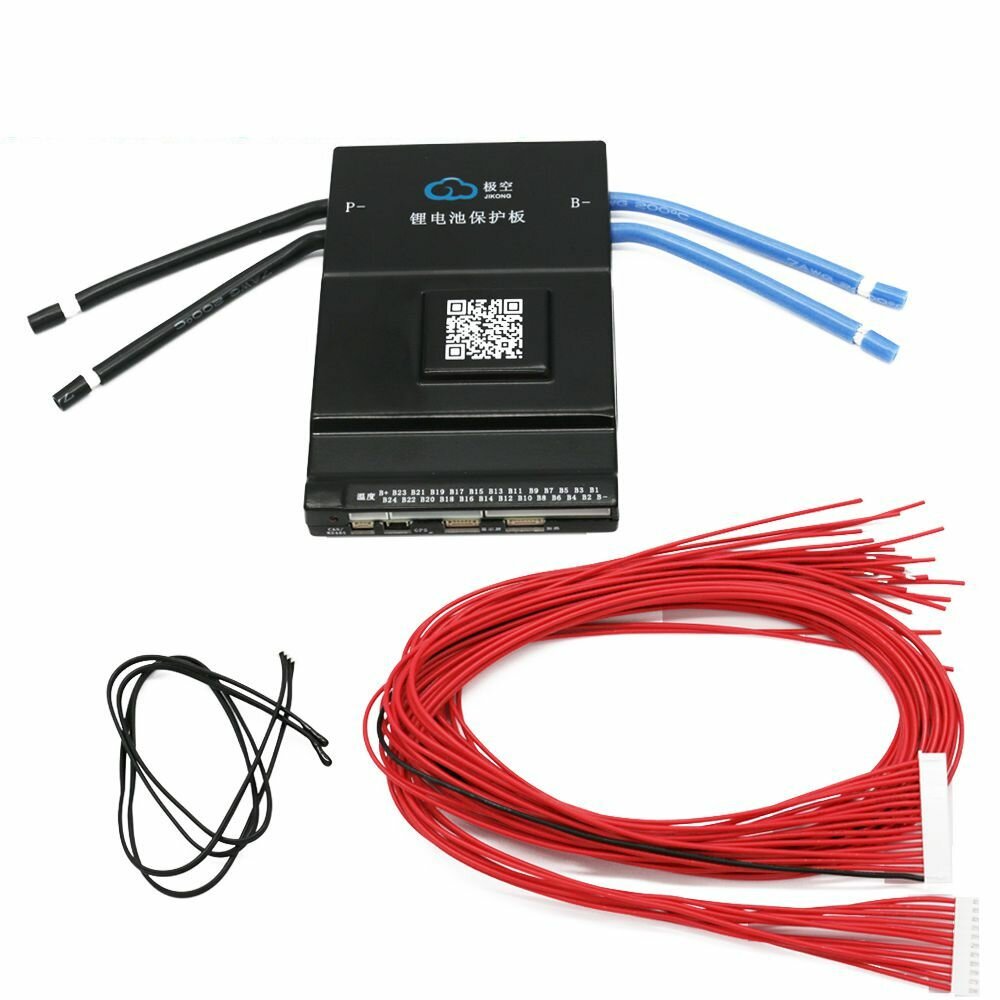

Box Contents:
- Bluetooth Enabled BMS
- Balancing Wires
- Temperature Probes
